EAN code8595568932143
Customs code72169180
Weight5,9290 kg/m
Surface finishPre-Galvanized
Temperature resistance-50 - 150 °C
Width300 mm
Height110 mm
Length6000 mm
StandardsČSN EN 61537
Thickness of metal sheet1,5 mm
Quantity of screws for connecting34

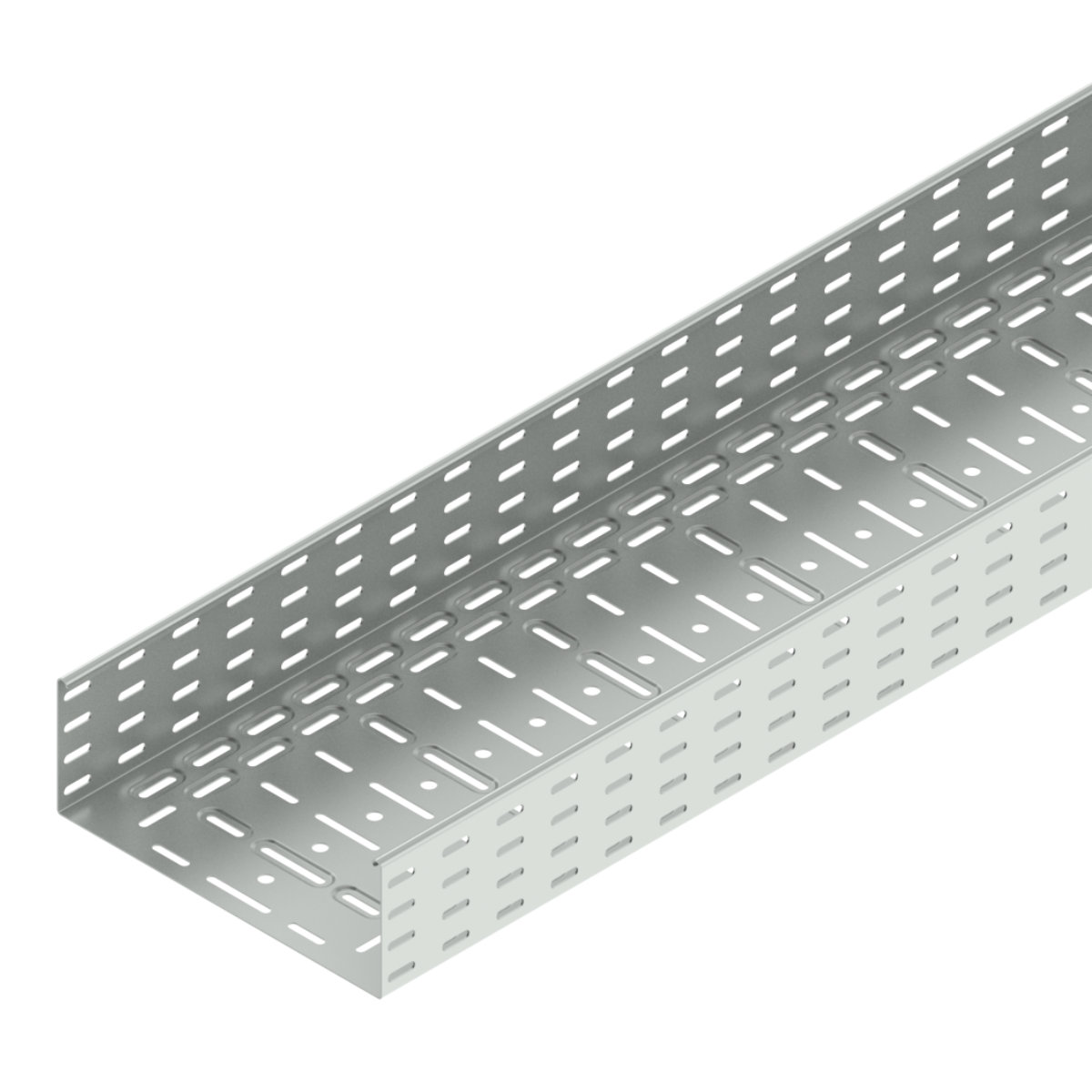

The standard length of the cable tray is 6 m. The trays are connected by 2 pcs of KDS jointing plate and 17 pcs of NSM 6X10 bolts. Jointing points can not be placed over the support. The cable tray is suitable for creating a cable route with a support spacing of up to 6 meters.
